  • ZZYVP Series Pilot-operated Self-operated Pressure Regulating Valve (Nitrogen-sealed Valve)
  • ZZYVP Series Pilot-operated Self-operated Pressure Regulating Valve (Nitrogen-sealed Valve)

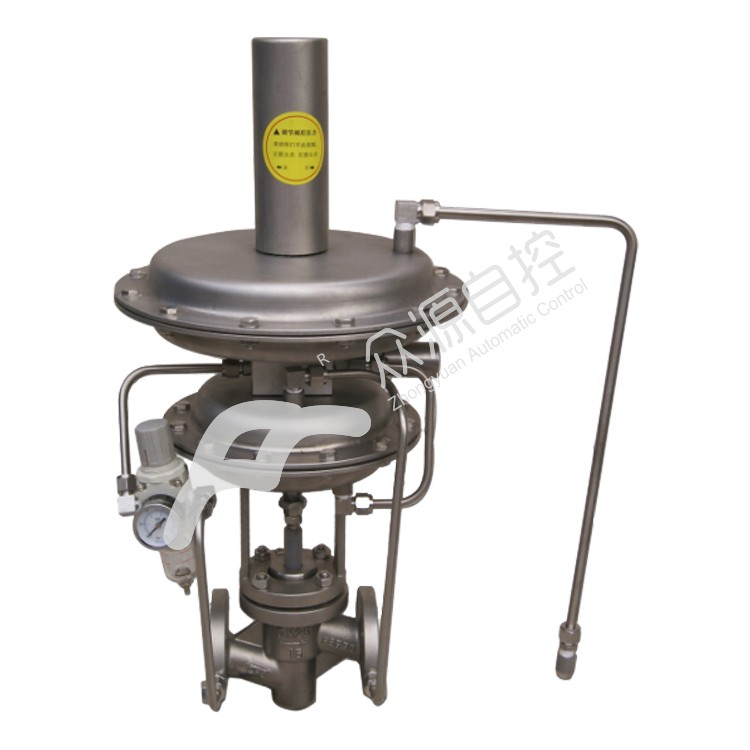

ZZYVP Series Pilot-operated Self-operated Pressure Regulating Valve (Nitrogen-sealed Valve)

· Compact structure with S-shaped flow path and low pressure drop
· Wide adjustable range and high-precision flow characteristics
· Excellent dynamic stability, low noise, and anti-cavitation design
· Large spool guide area enhances vibration resistance
· Complies with GB/T4213-2008 standard
· Suitable for high-temperature and low-temperature fluid control


Request a Quote
Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

  • Product Features
  • Valve Body Component Selection
  • ​Structural Configuration
  • Product Features

    Compact valve body with S-shaped flow path and guide vanes prevents turbulence

    Low pressure drop, high flow rate, wide adjustable range, high-precision flow characteristics

    Quick-change seat, integrated cage and guide bushing ensure low leakage

    Bellows in upper bonnet provide dual stem sealing to eliminate external leakage

    Multi-spring diaphragm actuator ensures compact structure, small size and high output force


  • Valve Body Component Selection

    Function typeType B
    Nominal diameterDN15mm-100mm (1/2" - 4")
    Flow characteristicsQuick opening
    Regulation accuracy±5%
    Temperature limit≤160℃
    Pressure reduction ratioMax 4000:1
    Nominal pressurePN Series: 1.6,2.5,4.0,6.3MPa; Class Series: Class150,300,600
    ConnectionsFlanged, Welded, Threaded
    Flange standardPN1.6MPa: GB/T9113.1; PN4.0/6.3/10.0MPa: GB/T9113.2
    Sealing facePN1.6MPa: Raised face (RF); PN4.0/6.3/10.0MPa: Flat face (F)
    Face-to-facePer GB12221-2005
    Body/bonnet materialWCB, WC9, CF8, CF8M
    Actuator typeDiaphragm
    Diaphragm materialNBR with polyester fabric, EPDM, FKM, Oil-resistant rubber, PTFE
    Surface coatingLight coffee (Epoxy resin). No coating for stainless steel body.

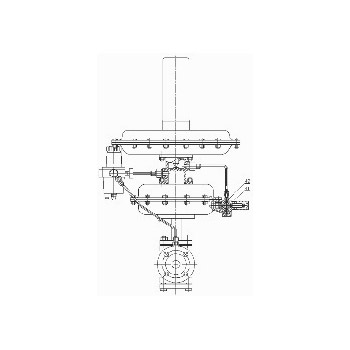

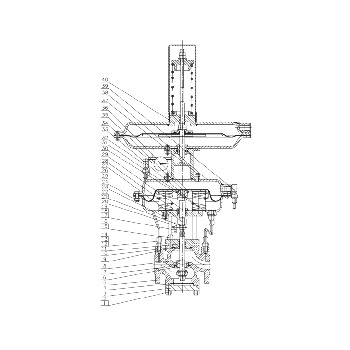

  • Structural Configuration
