Cross-Type Integral Valve

Product Features

1. Easy Cleaning
(1) Valve seat separated from common chamber enables full bore machining. Optimized flow path.
(2) Bottom connection sealing with wiper seal prevents media residue on threads and stem seals, enhancing cleanability.

2. Flexible Configuration allows linear (left-right) and axial (front-rear) assembly combinations.

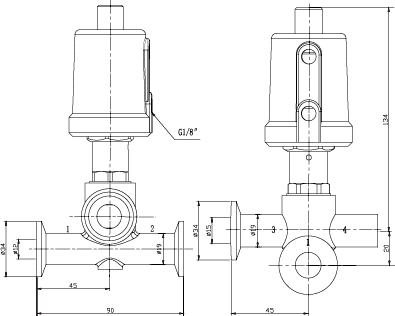

Structural Configuration

• Working Pressure: Max 1.6MPa
• Control Pressure: 0.3-0.8MPa
• Control Media: Neutral Gases or Air
• Body Material: CF8M
• Cylinder Material: CF8
• Sealing Material: PTFE
• Media Temperature: -10℃~+180℃
• Ambient Temperature: -10℃~+30℃
• Control Types: Single-acting NC, Double-acting NC, Double-acting Free State, Normally Open
• Connection: Quick-Connect
• Compatible Media: Water, Steam, Oil; Neutral Gases/Liquids; Organic Solvents; Acid-Alkali Solutions
