Precision in Flow Control, Excellence from Zhongyuan

Structural Configuration

Structural Configuration

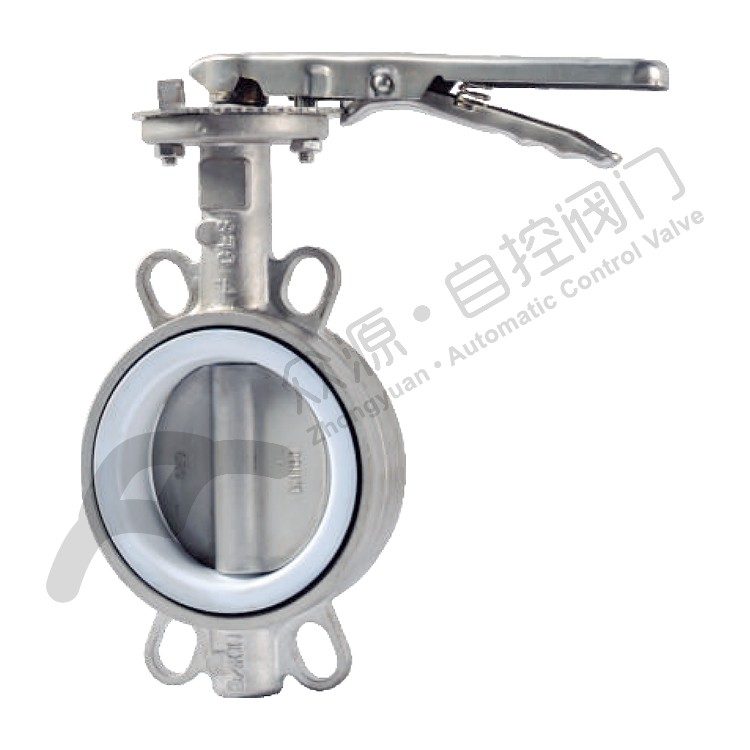

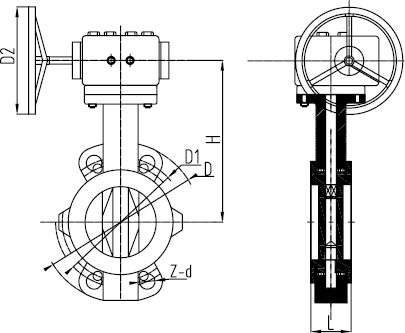

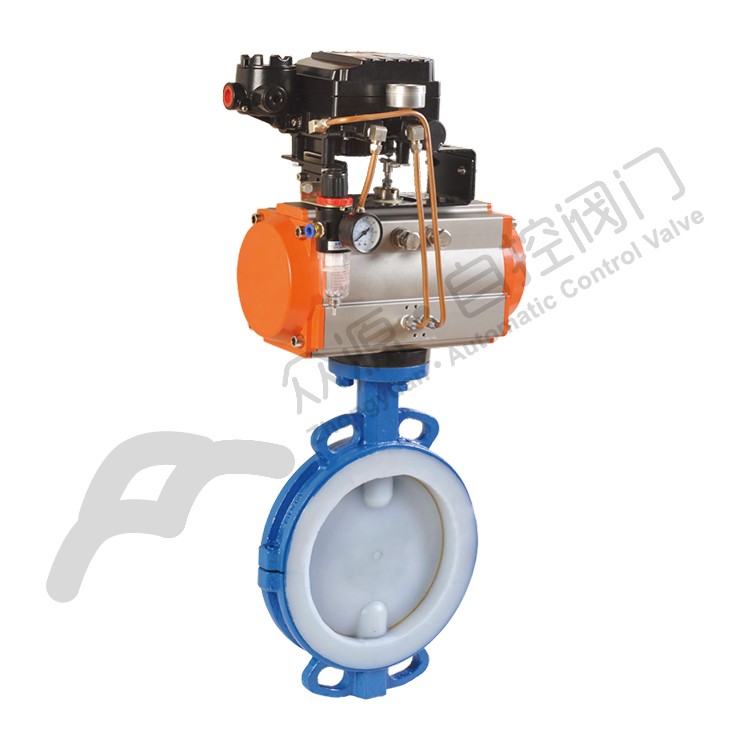

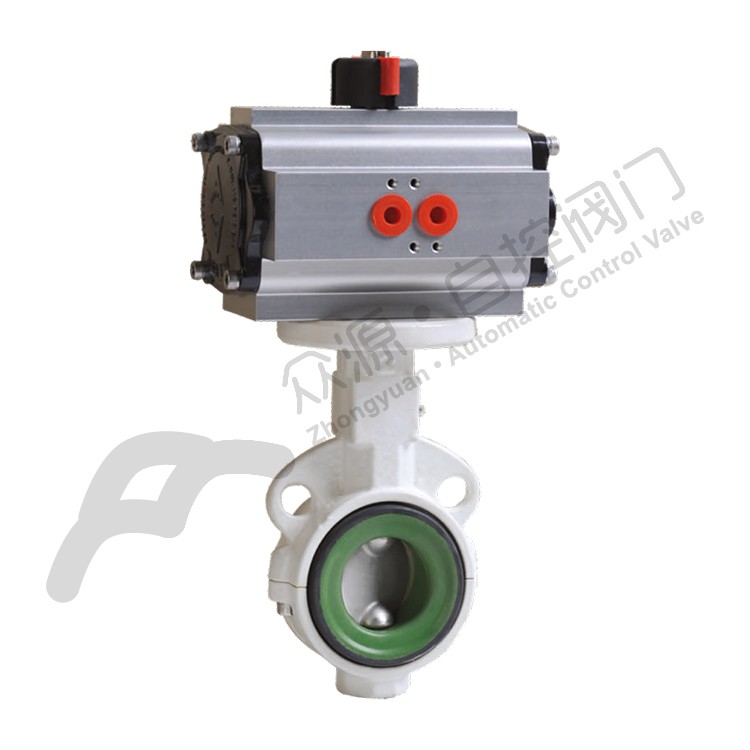

PTFE-Lined Wafer-type Butterfly Valve

Technical Specifications
• Design Standard: HG/T 3704
• Structural Codes: GB/T 12221 ASME B16.10
• Flange Construction: GB/T 9113.1 JB/T 79.1 ASME B16.5
• Connection Types: Wafer-type, Flanged
• Nominal Pressure: 1.0, 1.6MPa
• Test & Inspection: JB/T 9092 GB/T 13927 API 598
• Actuation Methods: Manual, Electric Actuators, Pneumatic Actuators

Data

Naminal diameter DN		connection dimension								Main dimensions			Torques
Naminal diameter DN		L		PN10 (1.0MPa)			PN16 (1.6MPa)			H	D2	Wt (kg)	Torques
mm	Inch	Wafer	Flange	D	D1	Z-d	D	D1	Z-d	H	D2	Wafer	N.M
40	1.5	40	106	145	110	4-18	145	110	4-18	135	150	5	23
50	2	43	108	160	125	4-18	160	125	4-18	143	150	5.5	25
65	2.5	46	112	180	145	4-18	180	145	4-18	157	150	6.5	40
80	3	46	114	195	160	4-18	195	160	8-18	178	150	8	45
100	4	52	127	215	180	8-18	215	180	8-18	185	200	9	105
125	5	56	140	245	210	8-18	245	210	8-18	206	200	12.5	225
150	6	56	140	280	240	8-23	280	240	8-23	225	280	15	295
200	8	60	152	335	295	8-23	335	295	12-23	275	280	23	355
250	10	68	165	390	350	12-23	405	355	12-25	326	340	32	705
300	12	78	178	440	400	12-23	460	410	12-25	333	340	45	1175
350	14	78	190	500	460	16-23	520	470	16-25	393	340	70	1410
400	16	102	216	565	515	16-25	580	525	16-30	438	340	990	1645
450	18	114	222	615	565	20-25	640	585	20-30	488	340	110	2680
500	20	127	229	670	620	20-25	705	650	20-34	540	400	135	3630
600	24	154	267	780	725	20-30	840	770	20-41	615	400	200	4500
700	28	165	292	895	840	24-30	910	840	24-41	660	500	315	5500
800	32	190	318	1010	950	24-34	1020	950	24-41	720	500	345	7500
900	36	203	330	1110	1050	28-34	1120	1050	28-41	785	500	420	10500
1000	40	216	410	1220	1160	28-34	1255	1170	28-48	900	640	620	15000
1200	48	254	470	1450	1380	32-41	1485	1390	32-54	1070	640	920	22000

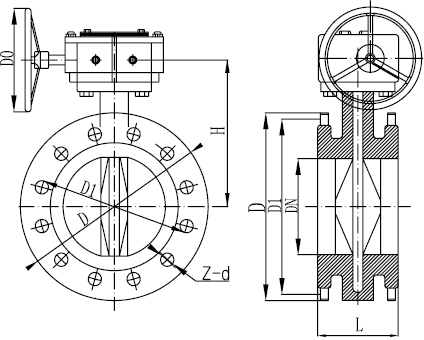

Flanged PTFE-Lined Butterfly Valve

Technical Specifications
• Design Standard: HG/T 3704
• Structural Codes: GB/T 12221 ASME B16.10
• Flange Construction: GB/T 9113.1 JB/T 79.1 ASME B16.5
• Connection Types: Wafer-type, Flanged
• Nominal Pressure: 1.0, 1.6MPa
• Test & Inspection: JB/T 9092 GB/T 13927 API 598
• Actuation Methods: Manual, Electric Actuators, Pneumatic Actuators

Data

Naminal diameter DN		Connection dimension								Main dimensions			Torques
Naminal diameter DN		L		ASME 150LB			JIS 10K			H	D2	Wt (kg)	Torques
mm	Inch	Wafer	Flange	D	D1	Z-d	D	D1	Z-d	H	D2	Wafer	N.M
40	1.5	40	106	127	98.5	4-15	140	105	4-19	135	150	10	-
50	2	43	108	152	120.7	4-19	155	120	4-19	143	150	12	30
65	2.5	46	112	178	139.7	4-19	175	140	4-19	157	150	14	48
80	3	46	114	190	152.4	4-19	185	150	8-19	178	150	18.5	54
100	4	52	127	229	190.5	8-19	210	175	8-19	185	200	20	126
125	5	56	140	254	215.9	8-22	250	210	8-23	206	200	22	270
150	6	56	140	279	241.3	8-22	280	240	8-23	225	280	25	354
200	8	60	152	343	298.5	8-22	330	290	12-23	275	280	46	426
250	10	68	165	406	362.5	12-25	400	355	12-25	326	340	58	846
300	12	78	178	283	431.8	12-25	445	400	16-25	333	340	70	1410
350	14	78	190	533	476.3	12-29	490	445	16-25	393	340	92	1692
400	16	102	216	597	539.8	16-29	560	510	16-27	438	340	135	1974
450	18	114	222	635	577.9	16-32	620	565	20-27	488	340	170	3216
500	20	127	229	698	635	20-32	675	620	20-27	540	400	203	4356
600	24	154	267	813	749.3	20-35	795	730	24-33	615	400	340	5400
700	28	165	292	927	863.6	28-35	905	840	24-33	660	500	520	6600
800	32	190	318	1060	977.9	28-41	1020	950	28-33	720	500	740	9900
900	36	203	330	1168	1085.8	32-41	1120	1050	28-33	785	500	1020	12600
1000	40	216	410	1289	1200.2	36-41	1235	1160	28-33	900	640	1390	18000
1200	48	254	470	1510	14222.4	44-41	1465	1380	32-39	1070	640	1950	26400
