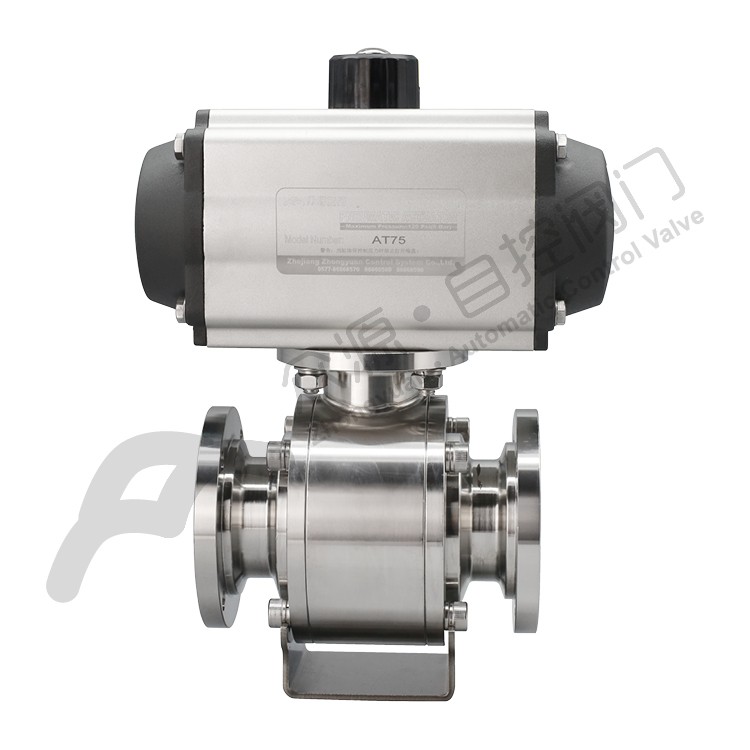

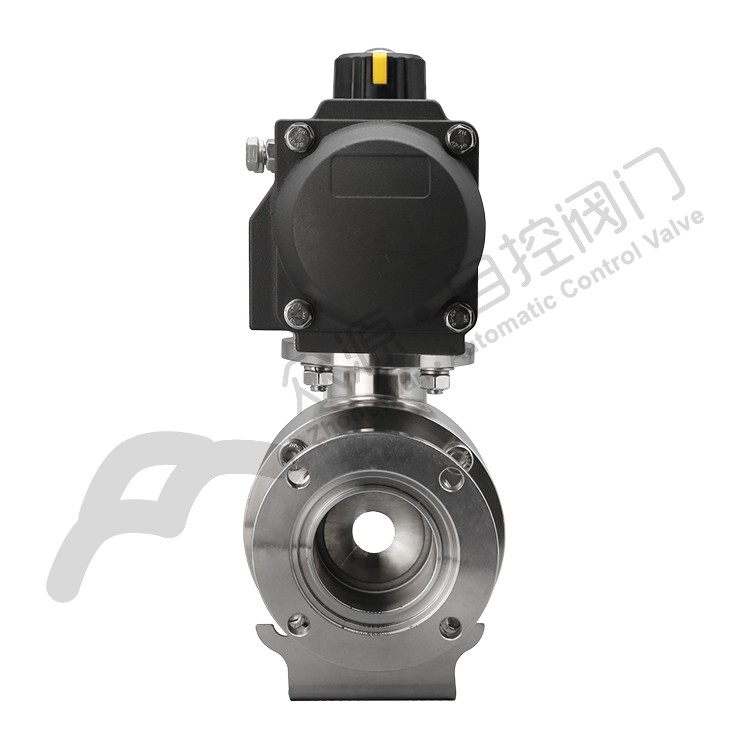

Type A Forged Pneumatic Sanitary Flange Ball Valve

主要性能指标

Application
Type A forged sanitary ball valve adopts forged stainless steel manufacturing process with high structural rigidity. Standard sanitary flange connections (DIN 11864-2/ISO 2852) are specially designed for high-purity liquid transfer including baijiu, wine, rice wine, herbal extracts, and biopharmaceutical fermentation processes. Widely used in food/beverage, pharmaceutical, and fine chemical industries.

Technical Parameters
• Nominal Diameter: DN15-DN100 1/2"-4"
• Body Pressure Rating: 1.0MPa/1.6MPa
• Max Working Pressure: 0.8MPa
• Temperature Range: -10℃~+150℃

Material
• Wetted Parts: 304/316L
• Seals: PTFE/EPDM

Connections
• Welded/Quick-connect/Threaded/Industrial Flange/Sanitary Flange

Standards
• Design & Manufacturing: GB/T 12237-2007
• Flange Standards: GB/T, JB/T, HG/T, API, ANSI, DIN, JIS, JPI, BS
• Face-to-Face: GB/T 12221-2005
• Testing: GB/T 13927-2008
• Actuation: Aluminum horizontal pneumatic actuator
• Nominal Diameter: DN15-DN100 ISO19.05-101.6
• Pressure Rating: 1.0MPa/1.6MPa
• Temp Range: Domestic PTFE -10~100℃/Imported PTFE -10~150℃
• Media: Gas/Water/Oil
• Accessories: Limit switch/Positioner/Solenoid valve/Filter regulator/Handwheel
• Connections: Sanitary flange/Optional interfaces (Welded/Quick-connect/External thread)
• Body Material: Forged body/CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)
