High Platform Ultra-Compact Ball Valve (Type ZY)

The ultra-compact ball valve features short structural length, lightweight, easy installation and material efficiency. The wafer-type insulation jacket provides excellent thermal retention. The elastic sealing structure ensures reliable sealing with smooth operation. Fire-safe design maintains reliable operation and sealing under fire conditions. Optional anti-static device available. Equipped with 90° position indicator holes for lockable operation prevention.

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Structural Configuration
Main Performance Parameters

Structural Configuration

Main Performance Parameters

Application
Wafer ball valves and wafer insulated jacket ball valves are suitable for pipelines with Class150, PN1.0-2.5MPa, operating temperature 29-180℃ (reinforced PTFE seats) or 29-300℃ (PPL seats). Used for shut-off or flow control, available in various materials for water, steam, oil, nitric acid, acetic acid, oxidizing media, urea, etc.

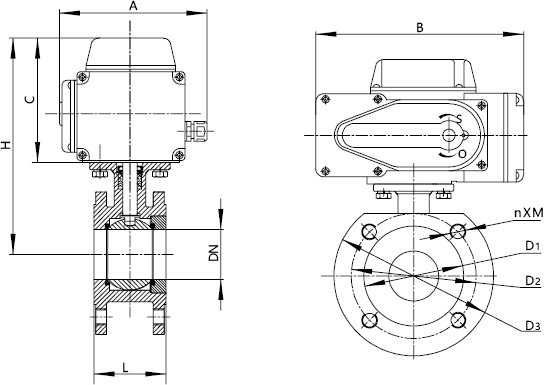

Dimensions

DN	Actuator	PN	A	B	C	H	L	D1	D2	D3	n×M
DN20	ZY-05	1.6MPa	137	160	103	162	38	55	75	105	4×M12
DN25	ZY-05		137	160	103	167	42	66	85	115	4×M12
DN32	ZY-05		137	160	103	180	50	78	100	135	4×M16
DN40	ZY-10		145	208	124	187	62	85	110	145	4×M16
DN50	ZY-10		145	208	124	216	72	100	125	160	4×M16
DN65	ZY-20		170	258	148	248	95	120	145	180	4×M16
DN80	ZY-20		170	258	148	267	118	135	160	195	8×M16
DN100	ZY-50		170	258	148	280	140	155	180	215	8×M16
DN125	ZY-50		148	258	148	305	195	185	210	245	8×M16
DN125	ZY-100		184	280	159	316	195	185	210	245	8×M16
DN150	ZY-100		184	280	159	375	225	210	210	280	8×M20
