Electric Three-Way Flange Ball Valve (Type LQ)

The Electric Three-Way Flange Ball Valve combines LQ electric actuator with three-way ball valve, functioning as a rotary-type shut-off and regulating valve. Features include positive sealing, compact structure, lightweight design and easy maintenance. Powered by 220V single-phase AC, it operates through control system signals via reversible gear reducer for pipeline switching.

Double-seated version enables flow direction switching or connecting two perpendicular channels. Quadruple-seated version allows three-way flow distribution, selective channel closure, and flexible confluence/divert control.

Applications: Water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel pipeline systems.

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Structural Configuration
Main Performance Parameters

Product Features

• Compact structure, quick operation, smooth flow path, low fluid resistance
• Superior sealing: PTFE seated design achieves leak-free performance through elastic deformation
• Multi-functional: Any port as inlet with zero leakage, configurable as L-port or T-port
• Easy maintenance: In-system inspection/repair without full valve removal after pressure relief

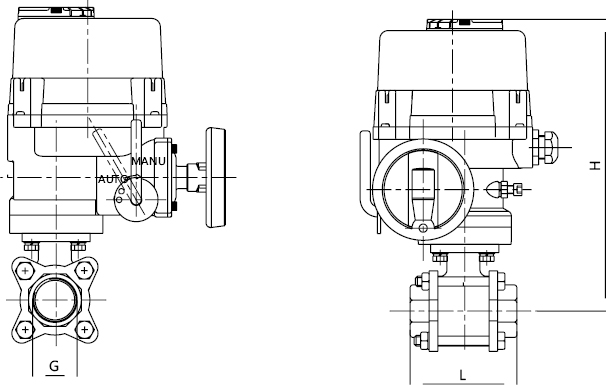

Structural Configuration

Main Performance Parameters

Size		Configuration	D1	D2	H1	L	n-Φ
mm	in	Configuration	1.6MPa	D2	H1	L	1.6MPa
15	1/2"	LQ1-6	65	95	280	140	4-Φ14
20	3/4"	LQ1-6	75	105	300	160	4-Φ14
25	1"	LQ1-6	85	115	311	180	4-Φ14
32	1 1/4"	LQ1-6	100	135	341	200	4-Φ18
40	1 1/2"	LQ1-10	110	145	377	220	4-Φ18
50	2"	LQ1-10	125	160	402	240	4-Φ18
65	2 1/2"	LQ2-20	145	180	448	260	4-Φ18
80	3"	LQ2-24	160	195	468	280	8-Φ18
100	4"	LQ3-50	180	215	517	320	8-Φ18
125	5"	LQ4-110	210	245	557	380	8-Φ18
150	6"	LQ4JS-200	240	280	661	440	8-Φ23
200	8"	LQ4JS-250	295	335	697	550	12-Φ23
