Compact Flange Ball Valve

The ultra-compact flange ball valve is a new-generation short face-to-face design developed through localized Italian technology, domestically known as "Italian-style ball valve" and "Q71F-16P wafer-type ball valve". Featuring integrated flanges, it directly replaces conventional flange ball valves.

With ISO-standard high platform body, compatible with pneumatic/electric actuators and accessories: position feedback, mechanical/smart positioners for automated process control.

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Applicable Standards
Structural Configuration
Special Specifications
Main Performance Parameters

Product Features

• Compact Ball Valve incorporates Italian technology with localized engineering for ultra-short face-to-face design
• Direct-mounted actuator ensures compact structure, reduced size/weight, low friction/hysteresis and stable operation
• Port types: Rectangular/V/O-type. Features: Compact, lightweight, easy installation. Applications: Food, pharmaceutical, fine chemical industries for oil/water/gas/fibrous media regulation/shut-off control
Applicable Standards

Standards & Specifications
• Actuation: Manual, Optional (Pneumatic, Electric)
• Nominal diameter: DN15-DN200
• Nominal pressure: 1.6MPa (2.5MPa customizable)
• Temperature range: Domestic PTFE -10-100°C/Imported PTFE -10-150°C
• Media: Gas, Water, Oil
• Optional drives: Manual, Electric, Pneumatic
• Connection standard: JB/T 86-2015 industrial flange
• Body materials: WCB, CF8(304), CF3(304L), CF8M(316), CF3M(316L)
Structural Configuration
Special Specifications

Special Options
• Explosion-proof type: Exd II CT5
• Modulating type: Accepts 4-20mA, 0-5VDC, 0-10VDC signals for flow regulation
• Manual override: Electric actuators with manual handwheel for valve operation

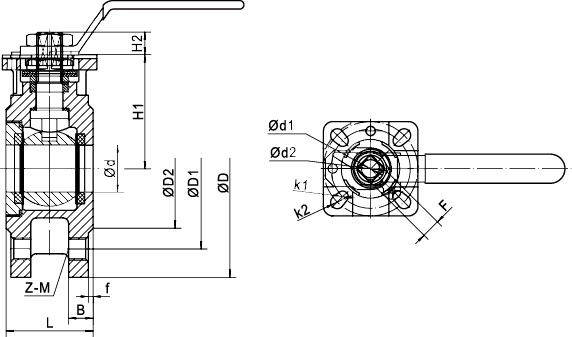

Main Performance Parameters

DN		d	D	D1	D2	L	B	F	Z-M	H1	H2	d1	d2	K1	K2	F
DN	NPS	d	D	D1	D2	L	B	F	Z-M	H1	H2	d1	d2	K1	K2	F
15	1/2"	15	95	65	45	35	11	2	4-M12	49	10	36	42	6	6	9
20	3/4"	20	105	75	55	38	12	2	4-M12	53	10	36	42	6	6	9
25	1"	25	115	85	64	45	13	2	4-M12	61	13	42	50	6	7	11
32	1-1/4"	32	130	100	77	53	14	2	4-M16	71	13	42	50	6	7	11
40	1-1/2"	40	145	110	85	61	16	3	4-M16	83	16	50	70	7	9	14
50	2"	50	155	125	99	80	17	3	4-M16	90	16	50	70	7	9	14
65	2-1/2"	65	180	145	123	95	18	3	4-M16	108	20	70	102	9	11	19
80	3"	80	195	160	137	118	18	3	8-M16	120	20	70	102	9	11	19
100	4"	100	210	180	160	140	20	3	8-M16	121	22	70	102	9	11	19
125	5"	125	245	210	185	195	22	3	8-M16				125			27
150	6"	150	280	240	210	225	22	3	8-M20				125			27
200	8"	200	335	295	265	275	22	3	8-M20				140			27
