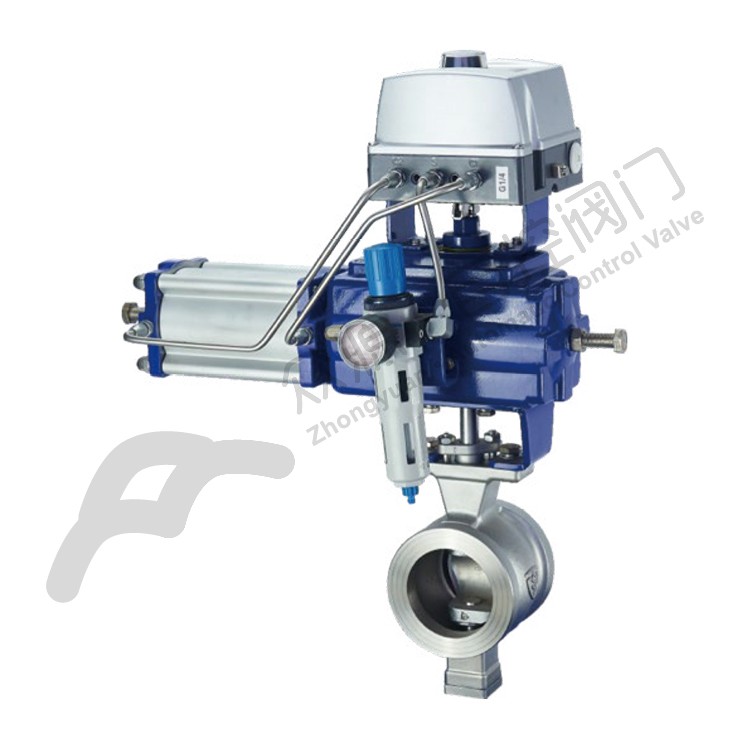

V-Port Wafer-Type Control Ball Valve

Request a Quote
Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

  • Main Performance Parameters

  • Main Performance Parameters

    Main Technical Parameters & Performance

    • Nominal Diameter: DN25-250

    • Pressure Rating: PN10-25/Class 150/10K

    • Body Material: WCB/CF8/CF8M/CF3M

    • Main Seal Type: Metal hard-sealed

    • Sealing Surface: Hard chrome-plated/Nitrided+Stellite overlay; Tungsten carbide spray-coated; Nickel-based alloy spray-coated; Stellite spray-coated

    • Flange Standards: GB/T 9113 HG/T 20592/HG/T 20615/ASME B16.5/EN 1092/JIS B2220:2004

    • Temperature Range: -29℃~220℃

    • Leakage Class: GB/T 4213/FCI 70-2 Class V/VI

    • Accessories: Electro-pneumatic positioner/Solenoid valve/Limit switch/Air filter regulator

    • Actuation: Manual/Pneumatic/Electric/Hydraulic
