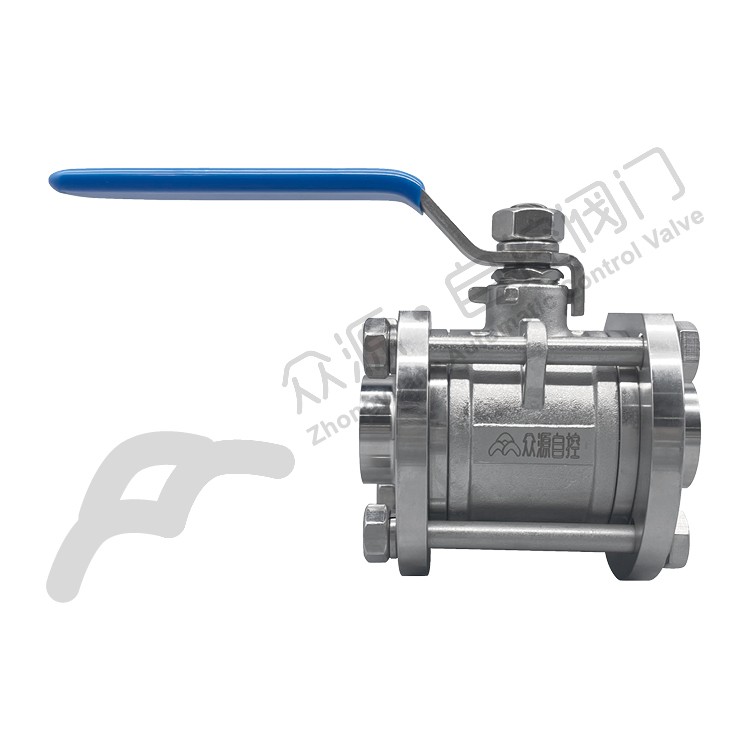

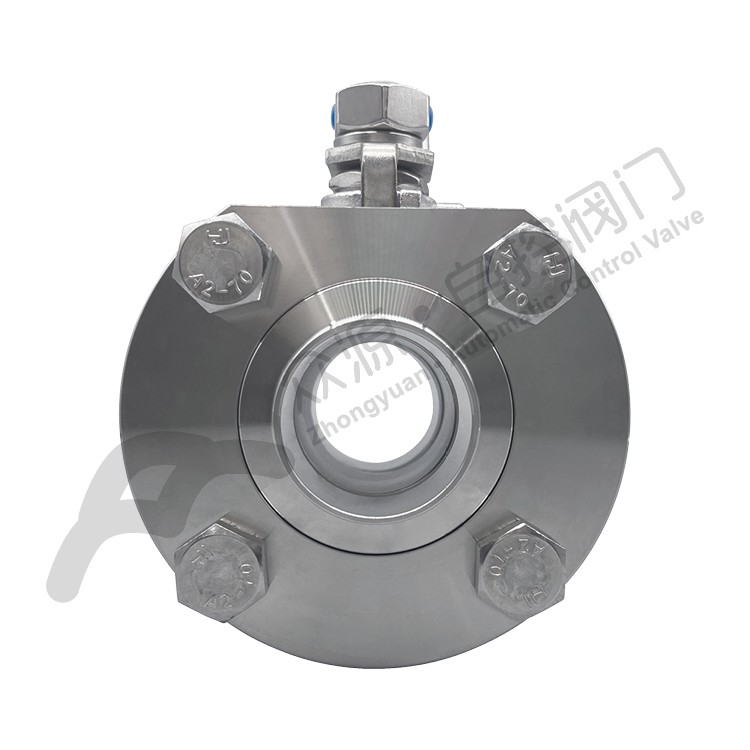

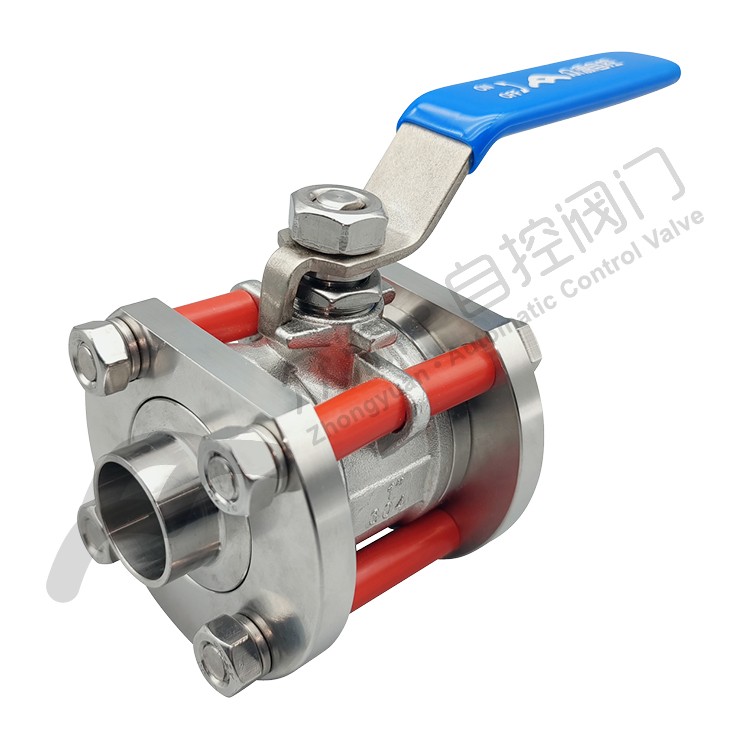

Manual Five-Piece Ball Valve

Request a Quote
Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

  • ​Structural Configuration
  • Main Performance Parameters
  • Structural Configuration


  • Main Performance Parameters

    Seat & Body Sealing

    • Embedded body seal

    • Ensures internal/external sealing integrity

    • Unique seat profile design

    • Guarantees upstream/downstream sealing effectiveness

    • Elastic seat absorbs compressive stress

    • Self-adjusting seat support optimizes operating torque

    • Seat collar design

    • Prevents axial displacement when upstream pressure exceeds downstream


    Technical Parameters

    • Flange Standards: GB/JB/HG/API/ANSI/DIN/JIS/JPI/BS

    • Body Material: CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)

    • Working Pressure: 1.0MPa-2.5MPa

    • Working Temperature: -15℃-180℃

    • Connections: Internal thread/External thread/Industrial flange/Sanitary flange/Butt weld/Socket weld/Quick-connect/Compression fitting

    • Actuation: Pneumatic actuators/Electric actuators/Hydraulic actuators

    • Nominal Diameter: DN8-DN100 ∮12.7-∮101.6


    Standard Specifications

    • Actuation: Manual/Configurable (Pneumatic/Electric)

    • Nominal Diameter: DN15-DN100

    • Pressure Rating: 1.6MPa/Custom higher pressures

    • Temperature Range: Domestic PTFE -10~100℃/Imported PTFE -10~150℃

    • Actuator Options: Manual/Electric/Pneumatic

    • Body Material: Cast steel/CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)

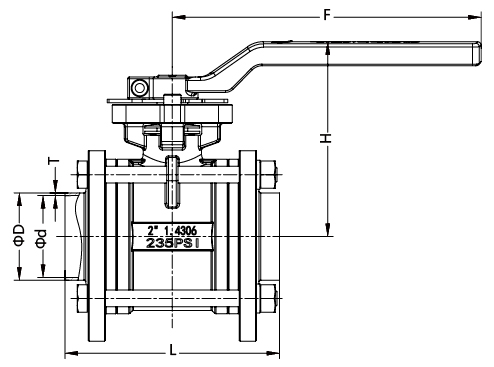

    Size dDTLHF
    Φ12.79.712.71.56464100
    Φ19.0516.0519.051.57366100
    Φ25.422.425.41.58674.5110
    Φ31.828.831.81.59393.5165
    Φ38.135.138.11.511199165
    Φ50.847.550.81.5146113.5180
    Φ63.559.563.52(1.5)152125180
    Φ76.272.276.22186145240
    Φ88.984.988.92216153240
    Φ101.697.6101.62266175320
