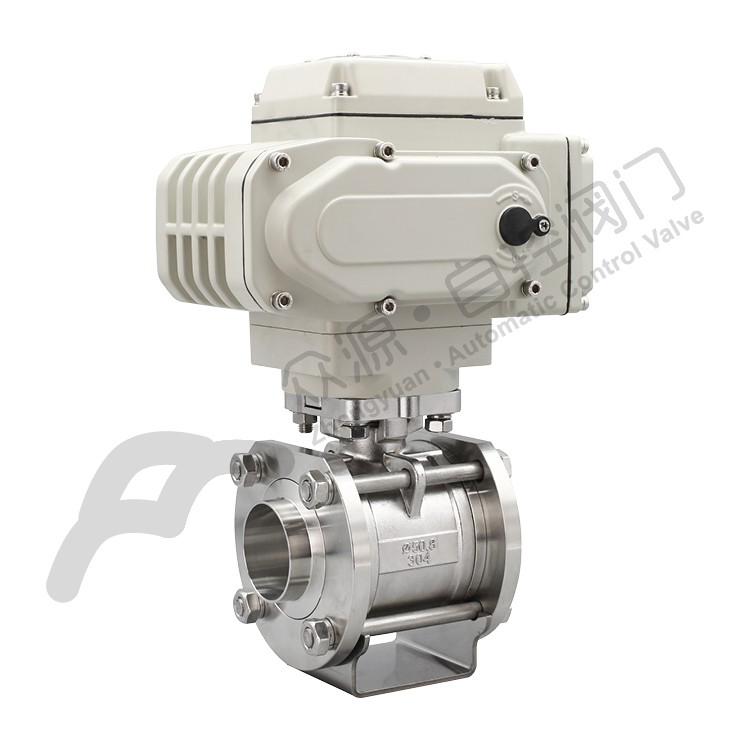

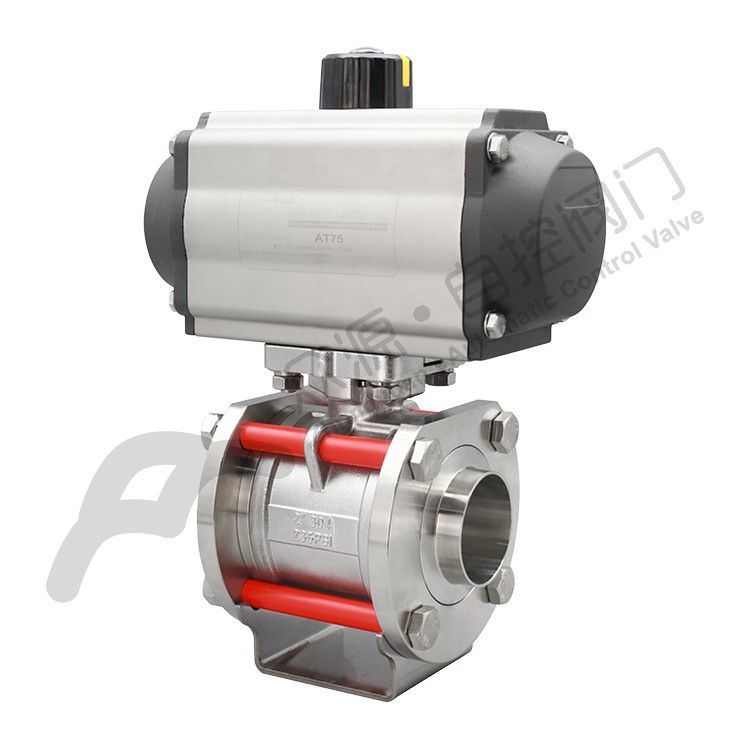

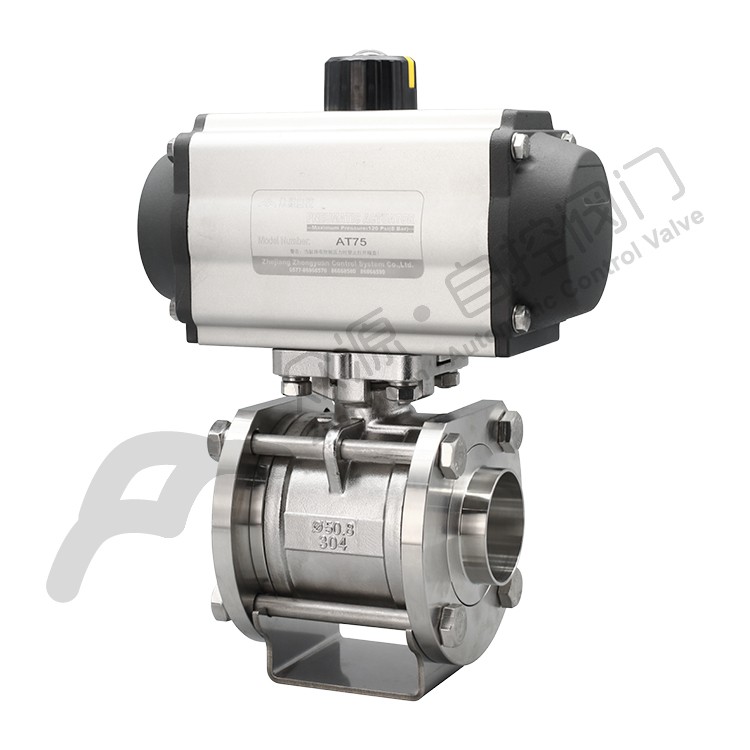

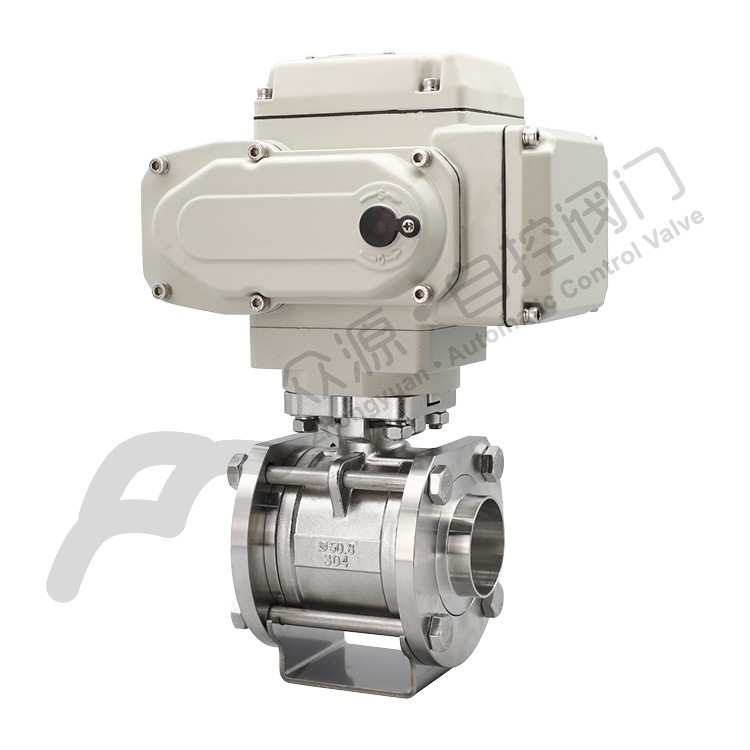

Five-Piece Ball Valve (Manual/Pneumatic/Electric)

Product Features

Seat & Body Sealing

• Embedded body seal

• Ensures internal/external sealing integrity

• Unique seat profile design

• Guarantees upstream/downstream sealing effectiveness

• Elastic seat absorbs compressive stress

• Self-adjusting seat support optimizes operating torque

• Seat collar design

• Prevents axial displacement when upstream pressure exceeds downstream

Main Performance Parameters

Technical Parameters

• Flange Standards: GB/JB/HG/API/ANSI/DIN/JIS/JPI/BS

• Body Material: CF8 (304)/CF3 (304L)/CF8M (316)/CF3M (316L)

• Working Pressure: 1.0MPa-2.5MPa

• Working Temperature: -15℃-180℃

• Connections: Internal thread/External thread/Industrial flange/Sanitary flange/Butt weld/Socket weld/Quick-connect/Compression fitting

• Actuation: Pneumatic actuators/Electric actuators/Hydraulic actuators

• Nominal Diameter: DN8-DN100 ∮12.7-∮101.6
