Electrically Actuated Threaded Ball Valve (ZY Series)

Electrically Actuated Threaded Ball Valve features monoblock construction compatible with ZY electric actuator. Operates on 4-20mA DC/0-10V DC/1-5V DC signals or single-phase power. Combines high functionality, compact size, lightweight economics, reliable performance, simplified integration and superior flow capacity. Widely implemented in automation systems across food processing, environmental protection, light industry, petroleum, papermaking, chemical, laboratory and power generation sectors.

Request a Quote

Support

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features
Structural Configuration
Main Performance Parameters

Product Features

Electrically Actuated Threaded Ball Valves and Butt-Weld Ball Valves are categorized into unibody (one-piece), two-piece, and three-piece configurations. Features Taiwan-imported casting process with optimized structure and aesthetic design. Spring-loaded seats ensure reliable sealing and low-torque operation. Bottom-entry stem with reverse sealing prevents ejection during thermal expansion. Two/Three-piece versions offer butt-weld (BW) and socket-weld (SW) connections with ISO brackets and locking mechanisms.

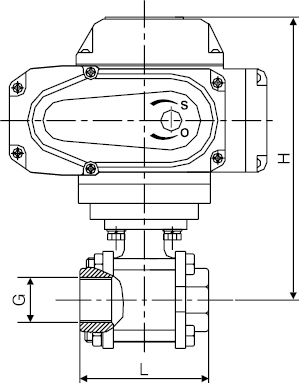

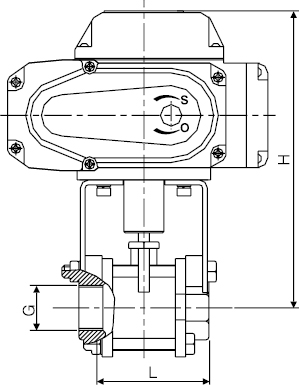

Structural Configuration
Main Performance Parameters

Size Configuration H L
mm in（G）
20 3/4" ZY-5 196 85
25 1" 200 90
32 1 1/4" 210 112
40 1 1/2" ZY-10 258 120
50 2" 252 145
65 2 1/2" ZY-20 279 170
80 3" 332 200
100 4" ZY-50 387 263

Electrically Actuated Threaded Ball Valve (ZY Series)

Product Details

Precision in Flow Control, Excellence from Zhongyuan

Product Features

Structural Configuration

Main Performance Parameters

Related Products

Zhongyuan Valves: Your Guardian of Fluid Safety

Size		Configuration	H	L
mm	in（G）	Configuration	H	L
20	3/4"	ZY-5	196	85
25	1"		200	90
32	1 1/4"		210	112
40	1 1/2"	ZY-10	258	120
50	2"	ZY-10	252	145
65	2 1/2"	ZY-20	279	170
80	3"	ZY-20	332	200
100	4"	ZY-50	387	263
