Product Details
Precision in Flow Control, Excellence from Zhongyuan
-
Product Features
-
Structural Configuration
-
Main Performance Parameters
-
Product Features
• 阀体、阀芯与介质接触部分304、316或316L
• 阀体均采用可拆连接，结构简单，维修方便
• 造型轻巧美观，表面光亮而不粘尘，无毛刺扎手
• 连接方式：焊接式、快装式、螺纹式
• 产品质虽：产品内外用高档抛光设备处理，达到表面精密度要求
• 产品精度：严格按照3A、DIN、SMS、BS等产品公差标准执行
-

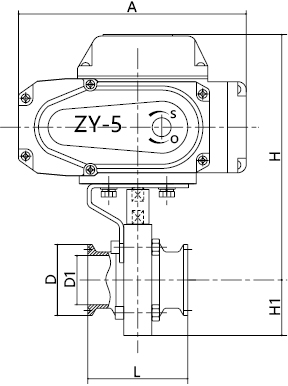

Structural Configuration
-
Main Performance Parameters
| 规格SIZE | 配置 | D1 | D | H | H1 | L | A |
| mm |
| Φ19 | ZY-05 | 16.5 | 50.5 | 173 | 38.5 | 66 | 162 |
| Φ25 | 22 | 50.5 | 173 | 38.5 | 66 | 162 |
| Φ32 | 29 | 50.5 | 173 | 38.5 | 66 | 162 |
| Φ38 | 35 | 50.5 | 175 | 38.5 | 70.5 | 162 |
| Φ45 | 40 | 64 | 178 | 44 | 70.5 | 162 |
| Φ51 | 48 | 64 | 181 | 47 | 70.5 | 162 |
| Φ63 | 59 | 77.5 | 188 | 55.5 | 76.5 | 162 |
| Φ76 | 72 | 91 | 194 | 64.5 | 76.5 | 162 |
| Φ89 | 85 | 106 | 208 | 69.5 | 81 | 162 |
| Φ102 | ZY-10 | 99 | 119 | 225 | 77.5 | 87 | 208 |
| Φ133 | 125 | 145 | 240 | 93 | 99.5 | 208 |
| Φ159 | 151 | 183 | 256 | 107 | 110 | 208 |
